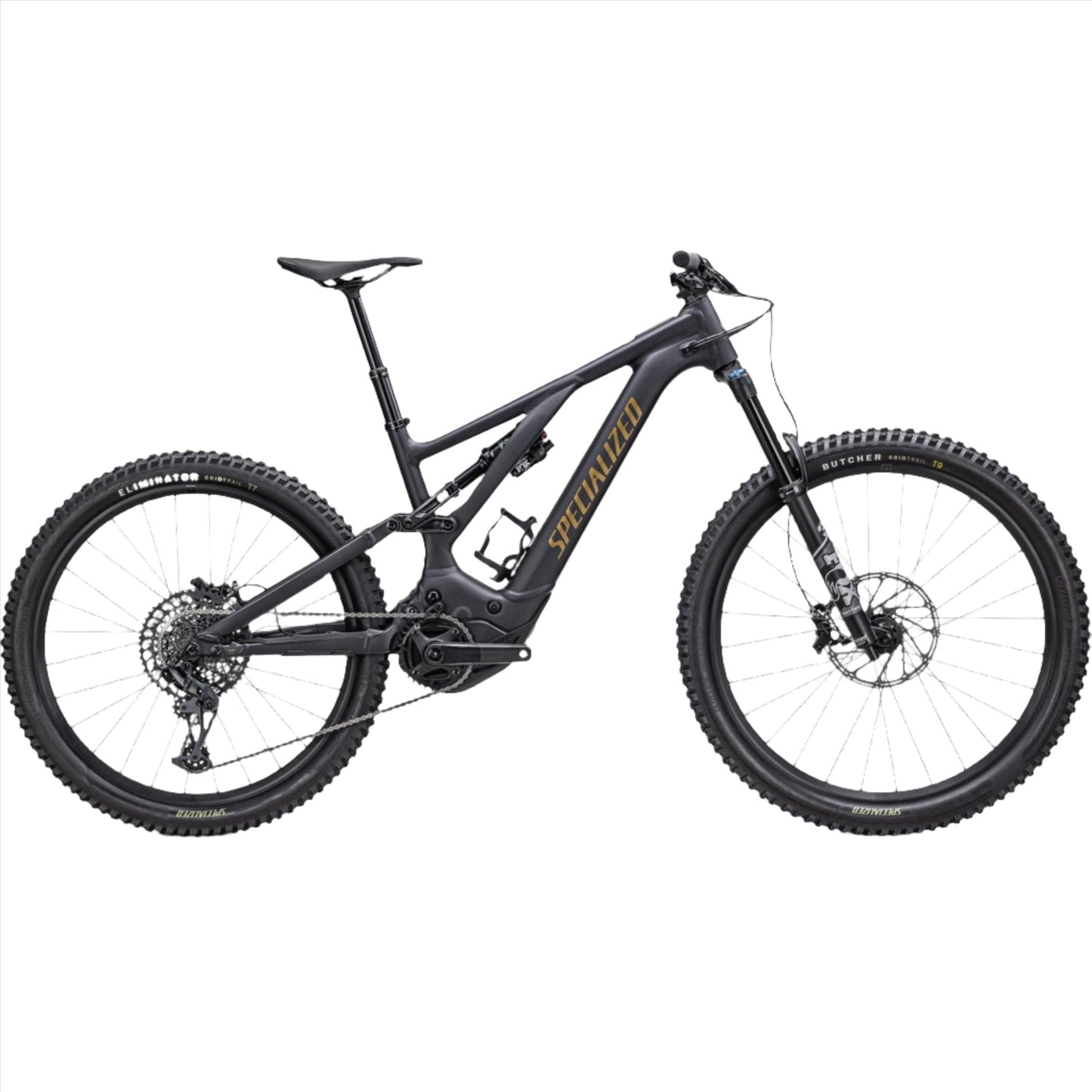

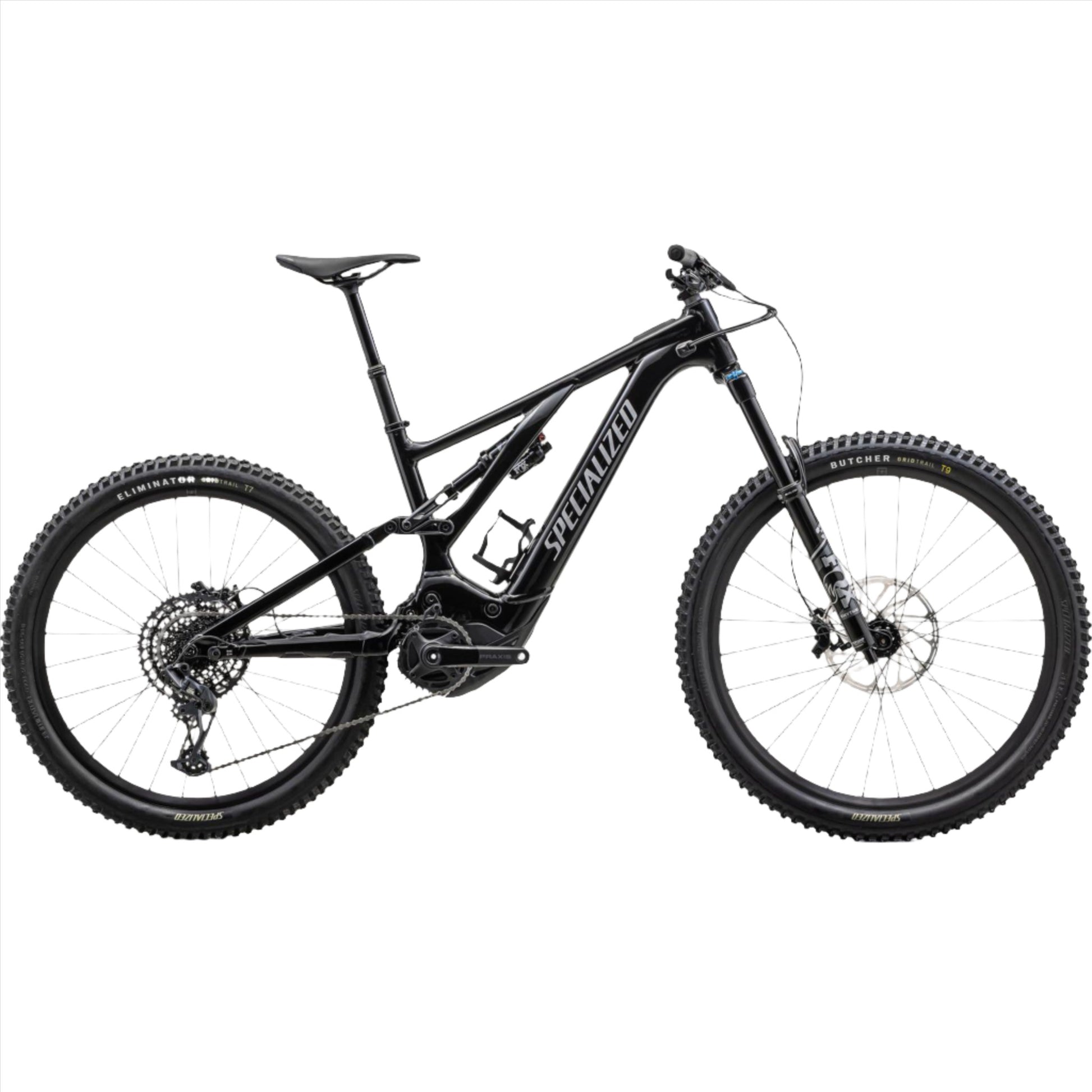

2023 Turbo Levo Comp Alloy

2023 Turbo Levo Comp Alloy

95223-5012

R 129,000.00
R 129,000.00 R 129,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
Color

Out of stock

Read More

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM GX/NX drivetrain, trail-taming FOX suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
    View full details

    Technical Specifications

    COCKPIT

    Stem: Alloy Trail Stem, 35mm bar bore

    Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm

    Tape: Specialized Trail Grips

    Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

    SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm



    FRAMESET

    Seat Binder: Alloy, 38.6mm

    Frame: Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing



    WHEELS

    Rear Hub: Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

    Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

    Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

    Spokes: DT Swiss Industry

    Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

    Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready

    Inner Tubes: Standard, Presta Valve



    E-BIKE

    Wiring Harness: Custom Specialized wiring harness

    Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

    Motor" Specialized Turbo Full Power System 2.2 Motor

    Battery: Specialized M3-700, Integrated battery, 700Wh

    UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote



    SUSPENSION

    Rear Shock S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm,

    Rear Shock S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm

    Fork: Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel



    DRIVETRAIN

    Crankset: Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

    Rear Derailleur: SRAM GX Eagle, 12-speed

    Shift Levers: SRAM GX Eagle, trigger, 12-speed

    Chain: SRAM NX Eagle, 12-speed

    Chainrings: SRAM X-Sync Eagle, 104 BCD, 34t, steel

    Cassette: Sram XG-1275, 12-speed, 10-52t



    BRAKES

    Rear Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

    Front Brake: SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm



    WEIGHT

    Weight: 23.92kg (52 lb, 11.8 oz)

    Weight Size: S4

    Geometry

    S1S2S3S4S5S6
    Crank Length160mm160mm160mm160mm160mm160mm
    Handlebar Width780mm780mm780mm780mm780mm780mm
    Stem Length40mm40mm50mm50mm50mm50mm
    Saddle Width155mm155mm143mm143mm143mm143mm
    Seatpost Length100mm125mm150mm170mm170mm190mm
    Stack605mm617mm626mm635mm644mm653mm
    Reach412mm432mm452mm477mm502mm532mm
    Headtube Length105mm105mm115mm125mm135mm145mm
    Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
    BB Height352mm350mm350mm350mm350mm350mm
    BB Drop25mm27mm27mm27mm27mm27mm
    Trail130mm130mm130mm130mm130mm130mm
    Fork Length (full)557mm567mm567mm567mm567mm567mm
    Fork Rake/Offset44mm44mm44mm44mm44mm44mm
    Front Center738mm760mm784mm814mm843mm878mm
    Chainstay Length442mm442mm442mm442mm442mm442mm
    Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
    Bike Standover Height752mm776mm783mm787mm788mm790mm
    Seat Tube Length380mm390mm405mm425mm445mm465mm
    Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
    Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
    Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
