SPECIALIZED

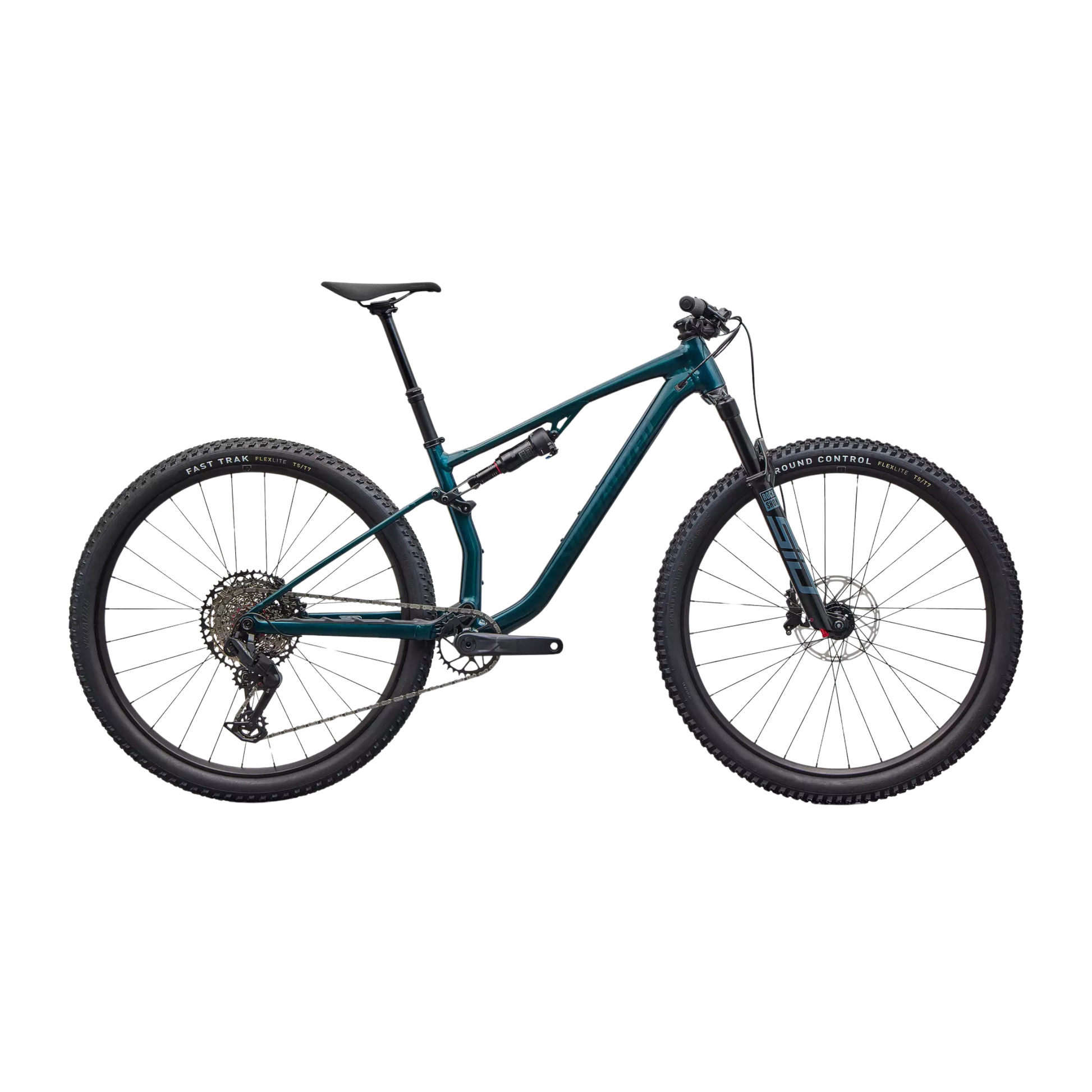

Chisel

Chisel

91722-7001

R 28,000.00
R 28,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
Color

Out of stock

Read More

The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.
  • The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames out there at 1,350g, but it also allows for tuned frame stiffness across all sizes.
  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
View full details

Technical Specifications

FRAMESET

Frame: Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder: Specialized Alloy, 34.9mm



Suspension

Fork: RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)



COCKPIT

Stem: 3D-forged alloy, 31.8mm, 7-degree rise

Handlebars: Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Tape: Specialized Trail Grips

Saddle: Body Geometry Power Sport, steel rails

SeatPost: Alloy, 2-bolt clamp, 30.9mm



BRAKES

Front Brake: SRAM Level T hydraulic disc, 2-Piston Caliper

Rear Brake: SRAM Level T hydraulic disc, 2-Piston Caliper



DRIVETRAIN

Rear Derailleur: SRAM SX Eagle, 12-speed

Shift Levers: SRAM SX Eagle, trigger, 12-speed

Cassette: SRAM PG-1210 Eagle, 11-50t

Chain: SRAM, SX Eagle, 12-speed

Crankset: SRAM SX Eagle, Powerspline

Bottom Bracket: SRAM Powerspline



WHEELS

Rims: Specialized Alloy, hookless, Tubeless ready, 25mm inner width

Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Rear Tire: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35



* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry




 XSSMLXL
Crank Length165mm170mm175mm175mm175mm
Seatpost Length350mm350mm400mm400mm400mm
Handlebar Width750mm750mm750mm750mm750mm
Stem Length60mm60mm70mm70mm70mm
Saddle Width155mm155mm143mm143mm143mm
Stack591mm605mm605mm619mm633mm
Reach385mm405mm430mm455mm480mm
Head Tube Length95mm95mm95mm110mm125mm
Head Tube Angle68°68°68°68°68°
BB Height304mm309mm309mm309mm309mm
BB Drop68mm63mm63mm63mm63mm
Trail103mm103mm103mm103mm103mm
Fork Length, Full486mm506mm506mm506mm506mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center647mm674mm699mm730mm760mm
Chainstay Length432mm432mm432mm432mm432mm
Wheelbase1070mm1099mm1124mm1154mm1185mm
Top Tube Length, Horizontal555mm578mm603mm632mm661mm
Bike Standover Height732mm762mm792mm816mm847mm
Seat Tube Length367mm400mm430mm470mm520mm
Seat Tube Angle74°74°74°74°74°
